Why Is an Icicle Shaped Like an Icicle?

One physicist thinks if he can understand the patterns that form on ice, he can understand the universe

BY


The Icicle Atlas by A. S-H Chen and Stephen Morris

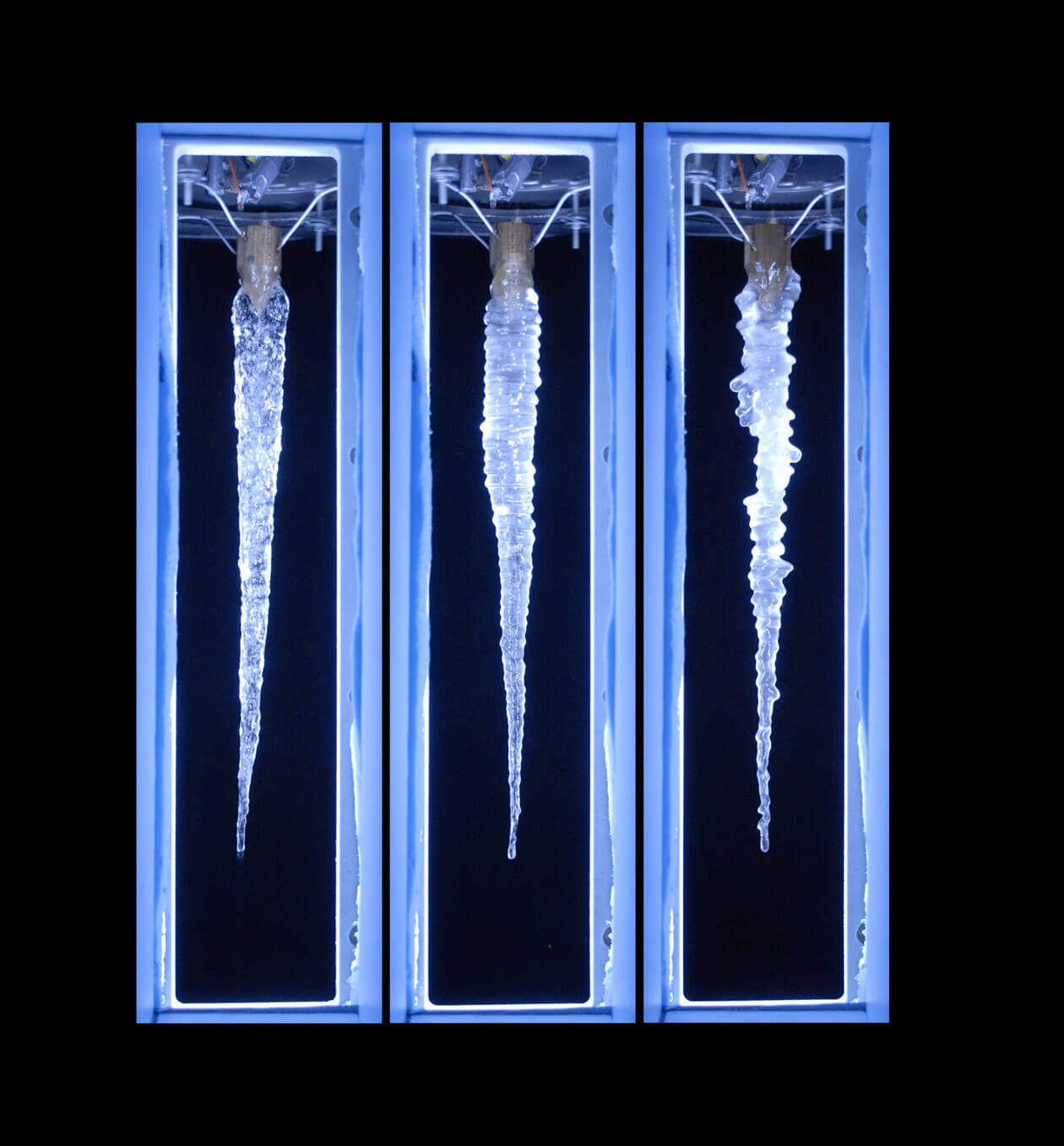

In his cluttered lab at the University of Toronto, Stephen Morris peers through the viewfinder of a camera pointed into a slot in an insulated plywood box the size of a beer fridge. Jutting wires and hoses connect the box to water tanks, drains, and power sources. Inside, a mixture of water and fluorescent dye dribbles from a hose onto a rotating wooden spike dangling in the chilled interior. Each drop of the liquid gradually freezes, layer upon layer. An object slowly takes shape: a delicate icicle. As the tapering column of ice lengthens and widens, something curious happens: the smooth surface develops ridges and valleys. From stem to tip, the entire icicle grows a new, textured skin.

Morris is a physicist who specializes in geomorphology—the study of why natural objects are shaped the way they are. At fifty-nine years old, he has been searching for an explanation for the ripples on icicles for more than a decade. If he can find an answer, he’ll be adding a small piece to one of the biggest scientific puzzles on the planet: Is there a unifying theory that can account for the structure of all things—animal, vegetable, and mineral?

Some physicists search for a “theory of everything” by smashing subatomic particles together or by imagining the inside of a black hole. Morris chose another path, focusing on “emergent properties”—natural behaviours that could reveal universal principles about how nature develops order and complexity from seeming chaos.

Icicle ripples are an example of one type of emergent property. Nature offers many other cases where a flat state spontaneously develops patterns: dirt roads develop washboard ruts as cars drive over them, syrup poured onto a moving surface goes from smooth to undulating, and stalactites in caves “self-organize” with ripples. Morris has studied them all. Under his gaze, these patterns offer up stories about the mathematical bones that give our universe structure.

In high school in Vancouver, Morris was a tinkerer. He was happiest playing with computers and electronics or working on projects in shop class. His girlfriend, Mary de Bruyn, was more into literature. Morris went on to study physics at the University of British Columbia and the University of Toronto, and de Bruyn, now his wife, studied classics. They feel they found parallel paths. “The classicists are the physicists of the humanities,” Morris says. “They don’t do things in translation. They learn Latin and Greek. We used to know a guy who could sight-read hieroglyphics. He could look at a picture of an ancient temple and just read it.” Morris mastered a different language, one created not by ancient peoples but by nature. It is a vocabulary of spirals and branches, of curved rivers and cracked earth, of polygons, fractals, waves, spots, and stripes. And every time he watches a water droplet freeze at the end of one of his icicles, Morris inches closer to understanding where natural order and patterns come from.

Stephen Morris

Geomorphologists often spend their time in the field, clambering over rock formations or studying erosion. But, as a physicist, Morris is more at home in his jam-packed lab full of spools of coloured wire and bottles of chemicals, hunkering over experiments that reveal the essence of pattern formation. Natural icicles, for example, are subject to inconsistent natural elements, including rain and wind. Here in the lab, Morris can control variables like temperature, air turbulence, and water flow, allowing him to narrow down the factors that might trigger emergent properties.His work strips away the mess and noise of the natural world, leaving him with precision and simplicity.

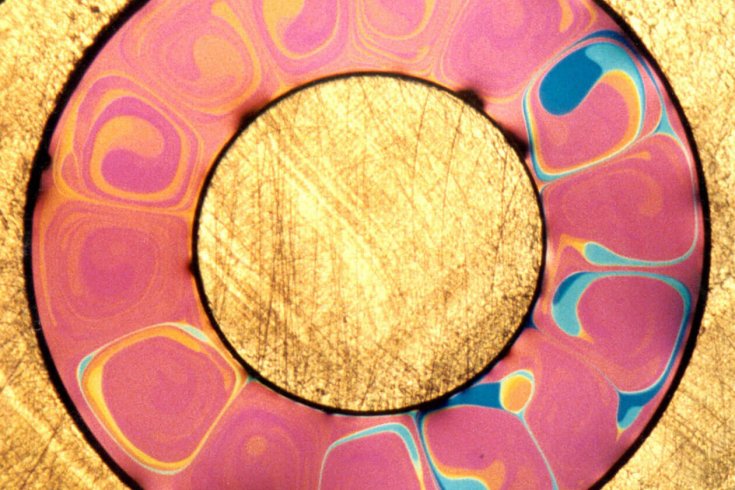

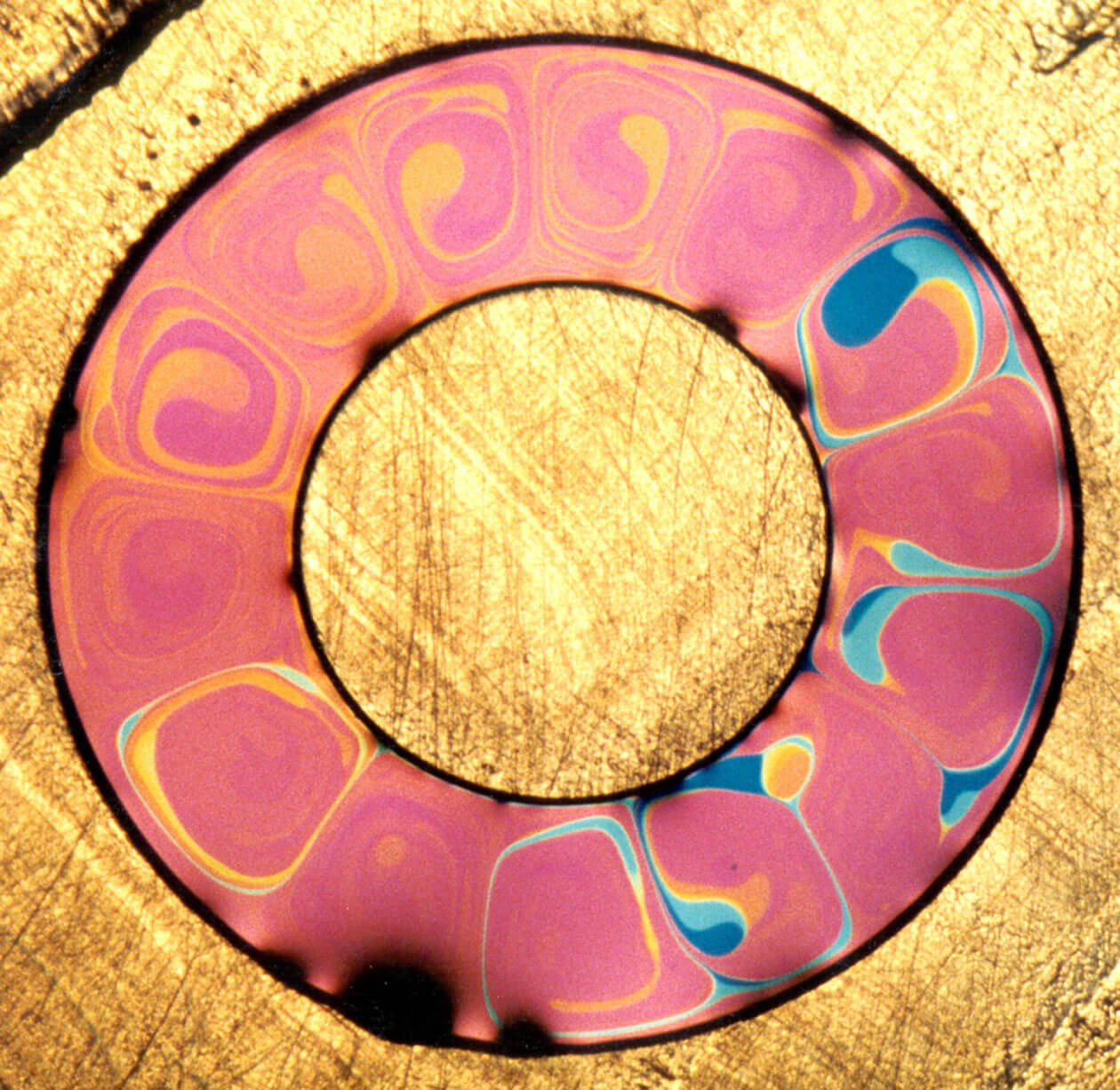

Morris recalls the moment he first discovered the visual poetry of patterns. In 1990, during a routine experiment for his PhD at the University of Toronto, he was gradually increasing the electrical voltage running across liquid crystal. Nothing happened, and then, seemingly out of nowhere, rapidly whirling spirals appeared. He could see multicoloured pinwheels whipping around in a highly organized pattern. Morris was stunned. “The moment that I saw this changed my life, and I cannot be unemotional about it,” he says. “I like the physics and I like the math, but my interest and my motivation is because I saw this thing.”

Morris’s pinwheels were more than just pretty—they also contained meaning. It was his introduction to the idea that experiencing beauty could also get you closer to universal truths. A year or two later, he was heating a thin layer of gas and noticed that, as the warming gas separated into hot and cold zones, it began to self-organize into something that looked like an alien fingerprint or an aerial view of the world’s most elaborate hedge maze. Morris and his colleagues called this pattern “spiral defect chaos,” and to this day, it is one of his favourites. He exhibited an enlarged but otherwise unaltered version in an art show at Toronto’s Project Gallery in 2013, and he wears a “spiral-defect-chaos sweater,” which de Bruyn made for him, when he delivers talks on the art and science of patterns.

Stephen Morris, chemistry by Michael C. Rogers

Geomorphology research has many practical applications—it can help determine the size of an evacuation zone for an avalanche or volcano or help urban planners determine whether a landfill site will still be viable decades down the line. Morris’s icicle research is of interest to engineers who deal with ice buildup on bridges or on power-line transformers. But the practicalities are not what interest scientists like Morris. “Ice buildup is a real concern,” he says, “but not my concern.”

Morris helps run an art-science salon and has collaborated with potters, musicians, and other artists, who use his research as inspiration for their work. “Most of us folks in this field of study love the fact that our data is beautiful, but Stephen shows off at art events with images from his lab,” says Karen Daniels, a physics professor at North Carolina State University. “This is magical to me.”

Morris’s work tends to produce as much beauty as it does pure science. “The best conference I ever went to was in the south of France,” Morris remembers. “Everybody gave their technical talks and PowerPoints. Then, at the end, we all just drank wine and showed each other pictures of our work. It was like showing baby pictures, everybody oohing and aahing. Nobody asked what it was all for, because it wasn’t for anything. It was for enjoying the beautiful.”

Stephen Morris

In march 2015, Morris launched an “icicle atlas,” an online database containing more than 230,000 images, videos, and 3D-printable icicle files. The atlas, which garnered him international attention in both media and academic circles, was based on revelations he and his team had during tests in 2008. “We did our first experiments with tap water because, you know, it’s just water,” Morris recalls. “We saw beautiful shapes with nice ripples on them, and we thought, ‘Okay, everything’s working, let’s up our game a bit and use distilled water.’ And what do you know. The ice is totally different.” Distilled water formed icicles as smooth and even as a skating rink.

Morris thinks the ripples must be caused by something in the water, an impurity that affects the temperature at which it freezes as well as its flow, that breaks the uniform surface and creates the regular rings. Morris has tainted his icicle water with varying amounts of salt, sugar, cobalt chloride, and other impurities, including fluorescent dye that changes colour when it freezes, allowing him to colour map areas as they transition from liquid to solid. Every addition caused the ripple effect. Morris had solved one mystery but was left with another. Every impurity, at every concentration, had the exact same effect: the ripples were always one centimetre wide—never larger or smaller. Why does the self-organizing mechanism work in exactly the same way, independently of so many variables?

“I intend to solve it at some level, but even when you fail to solve something, you still learn some truth,” he says. And as he chases this new puzzle, he still pauses to enjoy what he is seeing. “I’m trying to get people to see the world the way I do,” he says. “Studying patterns has been a source of fascination, beauty, and wonder, but they also all mean something. There is information in all of them.”

Patchen Barss has contributed to Scientific American and Nautilus. Flow Spin Grow: Looking For Patterns in Nature, his first children’s book, was published in October.
